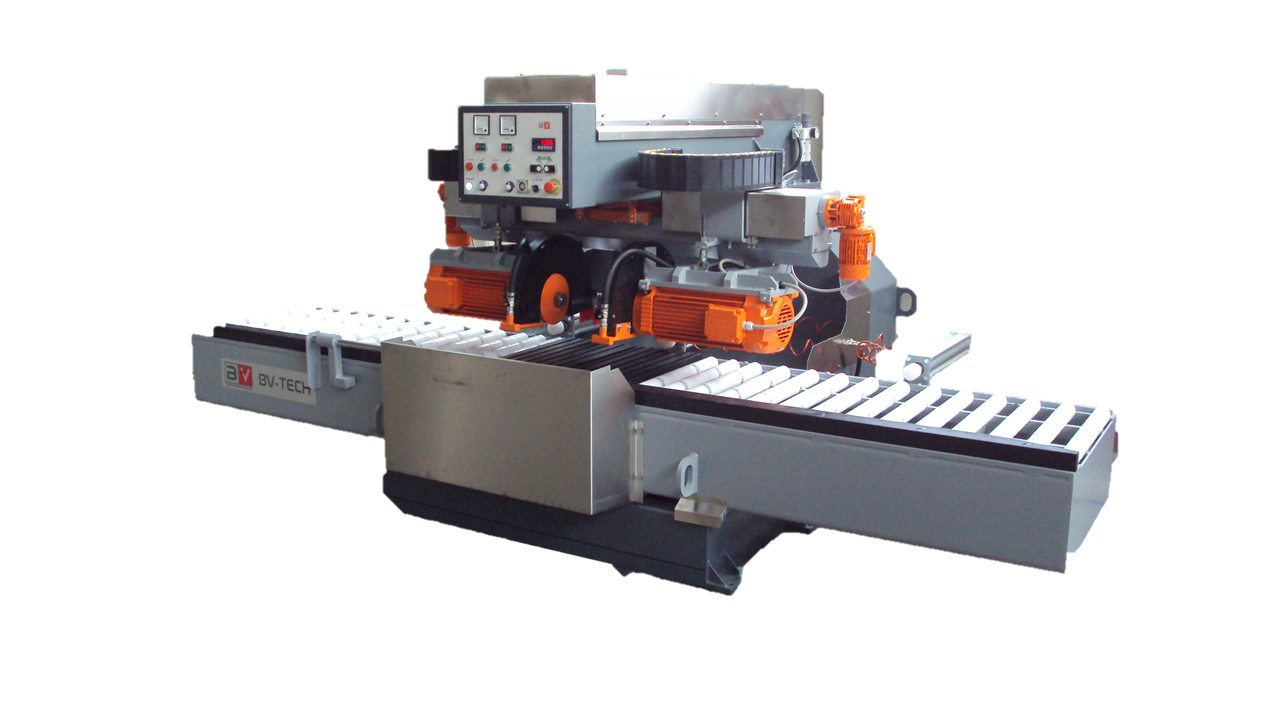

IBV/600 M-2

This machine enables to square the first and final parts of big thickness strips and the cut at variable measures thanks to its two independent cutting units. The grinded table with belt is fixed on the structure made of electro-welded steel. The table carries a special rubber belt and it is resistant to wear.

A special anticorrosive treatment is effected. The switch board is made of sheet steel, thickness 15/10 mm, painted with RAL 7032 paint, IP 55 protection level. The supplying unit is composed by a magnetothermic switch with shutter locking to avoid the opening of the switch board with tension. It can be restored after opening the shutter, in case of maintenance.

Get a Quote

2 units of cut
independent units of work
length of table with motorized belt mm 4000
useful cut width mm 610
maximum workable thickness marble mm 100
granite mm 40
diamond discs diameter mm 450
maximum distance between discs mm 650
minimum distance between discs mm 250
cutting unit motor power kW 11×2
belt forwarding motor power kW 1,5
cutting unit forwarding motor power kW 0,55
cutting speed electronic adjustment by inverter
digital instrument with possibility of repetition
of 1 single measure of cut
motorized positioning of cutting units
belt speed electronic adjustment
disc motor number of revolutions marble-granite rpm 1450
water consumption l/min 20
air consumption at 6 bar l/min 20
total installed power kW 24,5

Optional:

programme of cut on “touch screen” with possibility of setting 9 measures
visualization of cutting units positioning on “touch screen”
